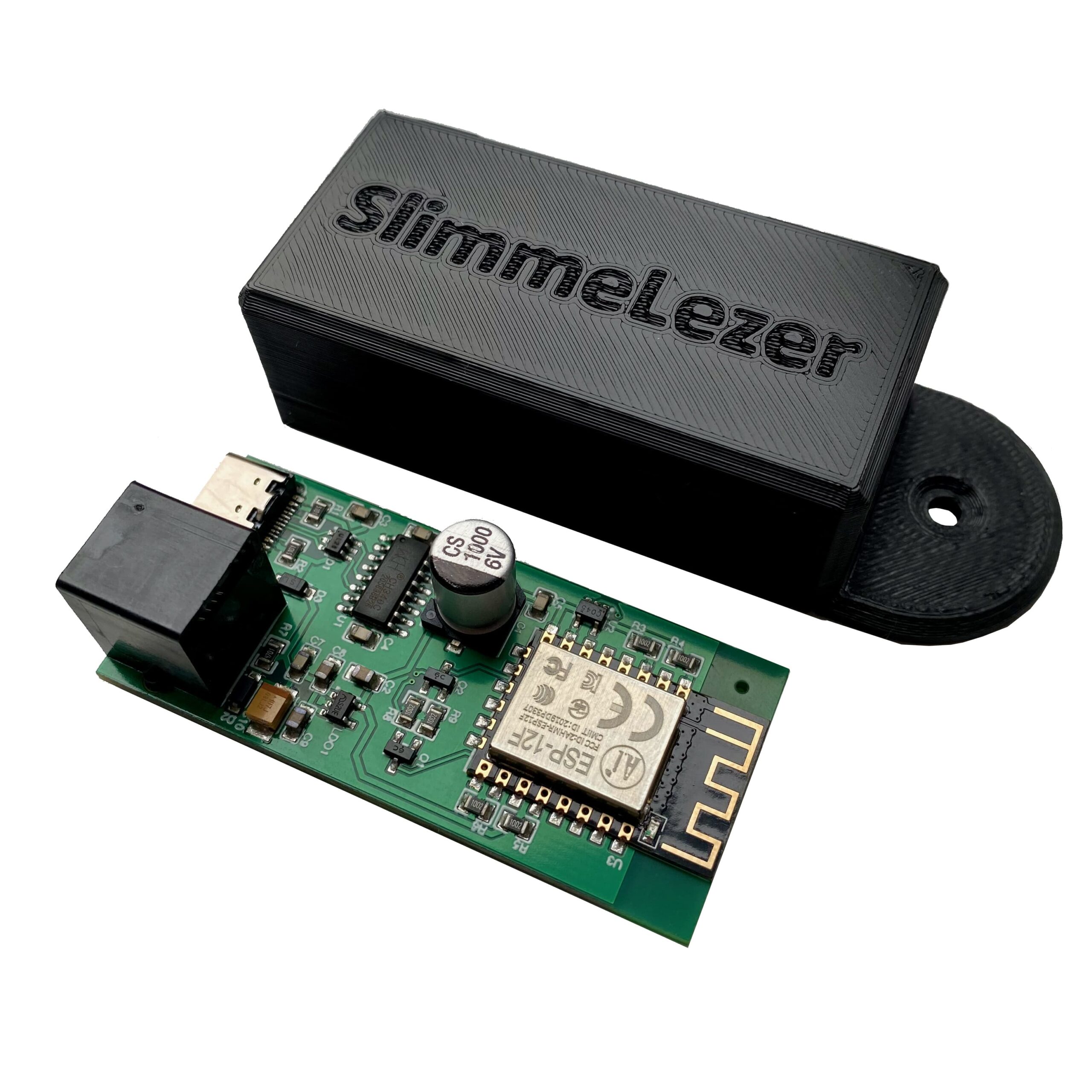

SlimmeLezer+

---
substitutions:
  device_name: slimmelezer
  timezone: "Europe/Brussels"
  domain: ".iot.internal"
  wifi_fast_connect: "false"

esphome:
  name: ${device_name}
  name_add_mac_suffix: false
  project:
    name: zuidwijk.slimmelezer
    version: "2.0"
  on_boot:
    then:
      - if:
          condition:
            lambda: return id(has_key);
          then:
            - lambda: |-
                std::string key(id(stored_decryption_key), 32);
                id(dsmr_instance).set_decryption_key(key.c_str());
          else:
            - logger.log:
                level: INFO
                format: "Not using decryption key. If you need to set a key use Home Assistant service 'ESPHome: ${device_name}_set_dsmr_key'"

esp8266:
  restore_from_flash: true
  board: d1_mini

mdns:
  disabled: false

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  fast_connect: "${wifi_fast_connect}"
  domain: "${domain}"
  # Powersaving for brownout due to 250mA restriction P1
  output_power: 14dB

logger:
  level: INFO
  baud_rate: 0

api:
  reboot_timeout: 15min
  encryption:
    key: !secret encryption_key_slimmelezer
  services:
    service: set_dsmr_key
    variables:
      private_key: string
    then:
      - logger.log:
          format: Setting private key %s. Set to empty string to disable
          args: [std::string(private_key).c_str()]
      - globals.set:
          id: has_key
          value: !lambda "return private_key.length() == 32;"
      - lambda: |-
          std::string pk_str(private_key);
          if (pk_str.length() == 32)
            pk_str.copy(id(stored_decryption_key), 32);
          id(dsmr_instance).set_decryption_key(pk_str.c_str());

ota:
  platform: esphome
  password: !secret ota_password
  on_error:
    then:
      - logger.log:
          format: "OTA update error %s"
          args: ["x"]

dashboard_import:
  package_import_url: github://zuidwijk/dsmr/slimmelezer.yaml@main
  import_full_config: true

time:
  - platform: homeassistant
    id: homeassistant_time
    timezone: "${timezone}"
    on_time_sync:
      then:
        - text_sensor.template.publish:
            id: last_time_sync
            state: !lambda 'return id(homeassistant_time).now().strftime("%Y-%m-%d %H:%M:%S");'
        - if:
            condition:
              lambda: 'return id(device_last_restart).state == "";'
            then:
              - text_sensor.template.publish:
                  id: device_last_restart
                  state: !lambda 'return id(homeassistant_time).now().strftime("%Y-%m-%d %H:%M:%S");'

globals:
  - id: has_key
    type: bool
    restore_value: yes
    initial_value: "false"
  - id: stored_decryption_key
    type: char[32]
    restore_value: yes

uart:
  baud_rate: 115200
  rx_pin: D7
  # Drop DSMR/UART buffers from 1700 → 1200 (Belgian P1 is fine at 1200; saves ~500–600 bytes).
  rx_buffer_size: 1200

dsmr:
  id: dsmr_instance
  max_telegram_length: 1200

sensor:
  - platform: dsmr
    energy_delivered_lux:
      name: "Energy Consumed Luxembourg"
    energy_delivered_tariff1:
      name: "Energy Consumed Tariff 1"
    energy_delivered_tariff2:
      name: "Energy Consumed Tariff 2"
    energy_returned_lux:
      name: "Energy Produced Luxembourg"
    energy_returned_tariff1:
      name: "Energy Produced Tariff 1"
    energy_returned_tariff2:
      name: "Energy Produced Tariff 2"
    power_delivered:
      name: "Power Consumed"
      accuracy_decimals: 3
    power_returned:
      name: "Power Produced"
      accuracy_decimals: 3
    electricity_failures:
      name: "Electricity Failures"
      icon: mdi:alert
    electricity_long_failures:
      name: "Long Electricity Failures"
      icon: mdi:alert
    voltage_l1:
      name: "Voltage Phase 1"
    voltage_l2:
      name: "Voltage Phase 2"
    voltage_l3:
      name: "Voltage Phase 3"
    current_l1:
      name: "Current Phase 1"
    current_l2:
      name: "Current Phase 2"
    current_l3:
      name: "Current Phase 3"
    power_delivered_l1:
      name: "Power Consumed Phase 1"
      accuracy_decimals: 3
    power_delivered_l2:
      name: "Power Consumed Phase 2"
      accuracy_decimals: 3
    power_delivered_l3:
      name: "Power Consumed Phase 3"
      accuracy_decimals: 3
    power_returned_l1:
      name: "Power Produced Phase 1"
      accuracy_decimals: 3
    power_returned_l2:
      name: "Power Produced Phase 2"
      accuracy_decimals: 3
    power_returned_l3:
      name: "Power Produced Phase 3"
      accuracy_decimals: 3
    gas_delivered:
      name: "Gas Consumed"
    gas_delivered_be:
      name: "Gas Consumed Belgium"
  - platform: uptime
    name: "SlimmeLezer Uptime"
  - platform: wifi_signal
    name: "SlimmeLezer Wi-Fi Signal"
    update_interval: 60s
  - platform: template
    name: "Free Heap"
    lambda: |-
      return (float)system_get_free_heap_size();
    unit_of_measurement: "bytes"
    accuracy_decimals: 0
    entity_category: diagnostic
    icon: "mdi:memory"

text_sensor:
  - platform: dsmr
    identification:
      name: "DSMR Identification"
    p1_version:
      name: "DSMR Version"
    p1_version_be:
      name: "DSMR Version Belgium"
  - platform: wifi_info
    ip_address:
      name: "SlimmeLezer IP Address"
    ssid:
      name: "SlimmeLezer Wi-Fi SSID"
    bssid:
      name: "SlimmeLezer Wi-Fi BSSID"
  - platform: version
    name: "ESPHome Version"
    hide_timestamp: true
  - platform: template
    name: 'Last Restart'
    id: device_last_restart
    icon: mdi:timeline-clock
    entity_category: diagnostic
  - platform: template
    name: "Last Time Sync"
    id: last_time_sync
    icon: mdi:clock
    entity_category: diagnostic
